| URL | http://<imageservice-url>/keyProperties |
|---|---|
| Parent Resource | Image Service |
| Required Capability | Image |
Description
This resource is supported from 10.1 onward.
The key properties resource returns key properties of the image service. The output format is always json.

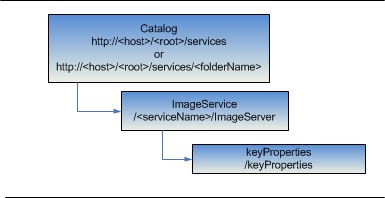

Resource Hierarchy
Parameters
Example Usage
Example 1: Return key properties of an image service created from a NITF image.
http://myserver.arcgisonline.com:port/arcgis/rest/services/sampleNITF/ImageServer/keyPropertiesJSON Response Syntax
{
"keyproperty1Name":"value1",
"keyproperty2Name":value2
}
JSON Response Example
{
"KIND": "IMAGE",
"BAND_COUNT": 1,
"HAS_TABLE": -1,
"HAS_XFORM": -1,
"NITF_FHDR": "NITF02.10",
"NITF_CLEVEL": "03",
"NITF_STYPE": "BF01",
"ESRI_MD_ACQUISITION_DATE": "19961217102630",
"ESRI_MD_DATA_TYPE": "Generic",
"ESRI_MD_ISCLOUDCOVER": "false",
"NITF_OSTAID": "i_3001a",
"NITF_FDT": "19971217102630",
"NITF_FTITLE": "Checks an uncompressed 1024x1024 8 bit mono image with GEOcentric data. Airfield",
"NITF_FSCLAS": "U",
"NITF_FSCLSY": "",
"NITF_FSCODE": "",
"NITF_FSCTLH": "",
"NITF_FSREL": "",
"NITF_FSDCTP": "",
"NITF_FSDCDT": "",
"NITF_FSDCXM": "",
"NITF_FSDG": "",
"NITF_FSDGDT": "",
"NITF_FSCLTX": "",
"NITF_FSCATP": "",
"NITF_FSCAUT": "",
"NITF_FSCRSN": "",
"NITF_FSSRDT": "",
"NITF_FSCTLN": "",
"NITF_FSCOP": "00000",
"NITF_FSCPYS": "00000",
"NITF_ENCRYP": "0",
"NITF_FBKGC": "255,255,255",
"NITF_ONAME": "JITC Fort Huachuca, AZ",
"NITF_OPHONE": "(520) 538-5458",
"NITF_IID1": "Missing ID",
"NITF_IDATIM": "19961217102630",
"NITF_TGTID": "",
"NITF_IID2": "- BASE IMAGE -",
"NITF_ISCLAS": "U",
"NITF_ISCLSY": "",
"NITF_ISCODE": "",
"NITF_ISCTLH": "",
"NITF_ISREL": "",
"NITF_ISDCTP": "",
"NITF_ISDCDT": "",
"NITF_ISDCXM": "",
"NITF_ISDG": "",
"NITF_ISDGDT": "",
"NITF_ISCLTX": "",
"NITF_ISCATP": "",
"NITF_ISCAUT": "",
"NITF_ISCRSN": "",
"NITF_ISSRDT": "",
"NITF_ISCTLN": "",
"NITF_ISORCE": "Unknown",
"NITF_PVTYPE": "INT",
"NITF_IREP": "MONO",
"NITF_ICAT": "VIS",
"NITF_ABPP": "08",
"NITF_PJUST": "R",
"NITF_ICORDS": "G",
"NITF_IGEOLO": "325900N0850000E325900N0850001E325859N0850001E325859N0850000E",
"NITF_IC": "NC",
"NITF_IMODE": "B",
"NITF_IDLVL": "1",
"NITF_IALVL": "0",
"NITF_ILOC_ROW": "0",
"NITF_ILOC_COLUMN": "0",
"NITF_CCS_ROW": "0",
"NITF_CCS_COLUMN": "0",
"NITF_IMAG": "1.0 "
}
